efficient and stable dried stick noodle production line also as vermicelli line
Video:
https://www.youtube.com/watch?v=LQKG14UfcOQ&t=334s
Description:

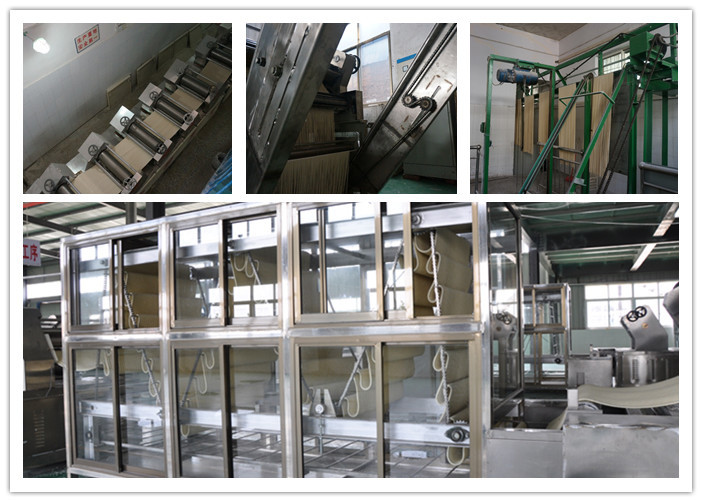

Dried stick noodle production line has obtained 5 national patents. It is newly designed tunnel with adoption of special chain system and longitudinal conveying system, keeps moisture and temperature changing continuously with stable noodle conveying. Automatic noodle up-conveying, down-conveying, cutting and packing have lighten labor force and improved sanitation.
device configuration list
| Item | Name | Quantity | Remark |
| 1 | Brine mixers | 1 set | capacity 200L--1500L/set |
| 2 | Metering supply device | 1 set | 100L--250L/set |
| 3 | Dough mixer | 2 set | 200kg--350kg/pot |
| 4 | Aging machine | 1 set | 100kg--400kg/pot |
| 5 | Single, continuous sheeter | 1 set | opening width: 510mm, 550mm, 650mm, 800mm, 900mm, 1000mm; 7--10 steel roller |
| 6 | Rod giving machine | 1 set | easy operation, countious and adjustable |
| 7 | Cutting machine | 1 set | sawtooth |
| 8 | Hanging low temperature drying machine | 1 set | drying time 4.5 hours, wire rope length 450--550 meters, 3 or 4 area |
| 9 | Cutting machine | 1 set | hob automatic type, new multi blade type, circular saw blade type |
| 10 | Electrical control system | 1 set | adopt frequency control, PLC program control |
Our Service:
1. we will provide comprehensive planning programming and design service;
2. we will send an engineer to buyer's factory to install and test machines;
3. we will provide basic recipt and technical support;
4. Training of equipment maintenance and operating personally;
5. Provide 1 year complete warranty and life-time maintenance service.
